Dengtai Armor Systems
Leopard 2 Anti-Drone Cage — Cope Cage Armor System
Purpose-built cope cage armor for Leopard 2 main battle tanks. Protects against FPV drones, loitering munitions, and top-attack threats while maintaining full turret traverse and mobility.
Gallery

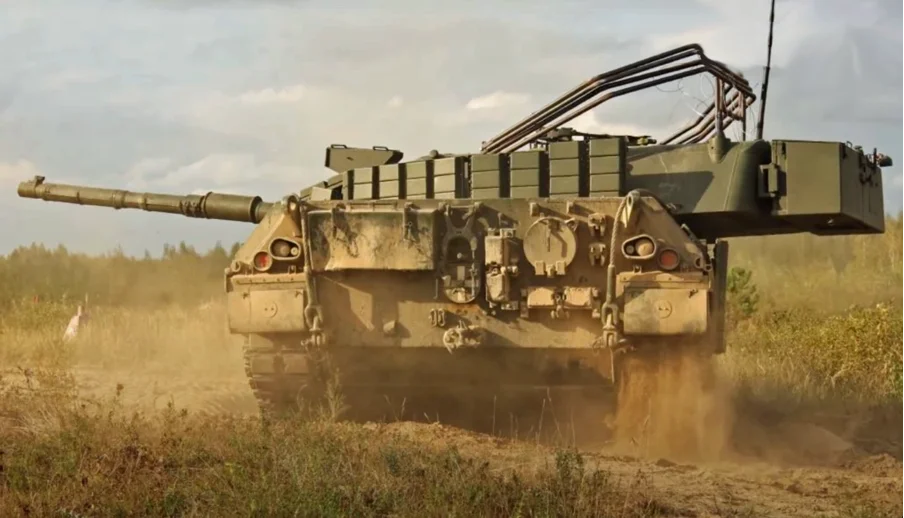

Leopard 2 with Full Cage Armor

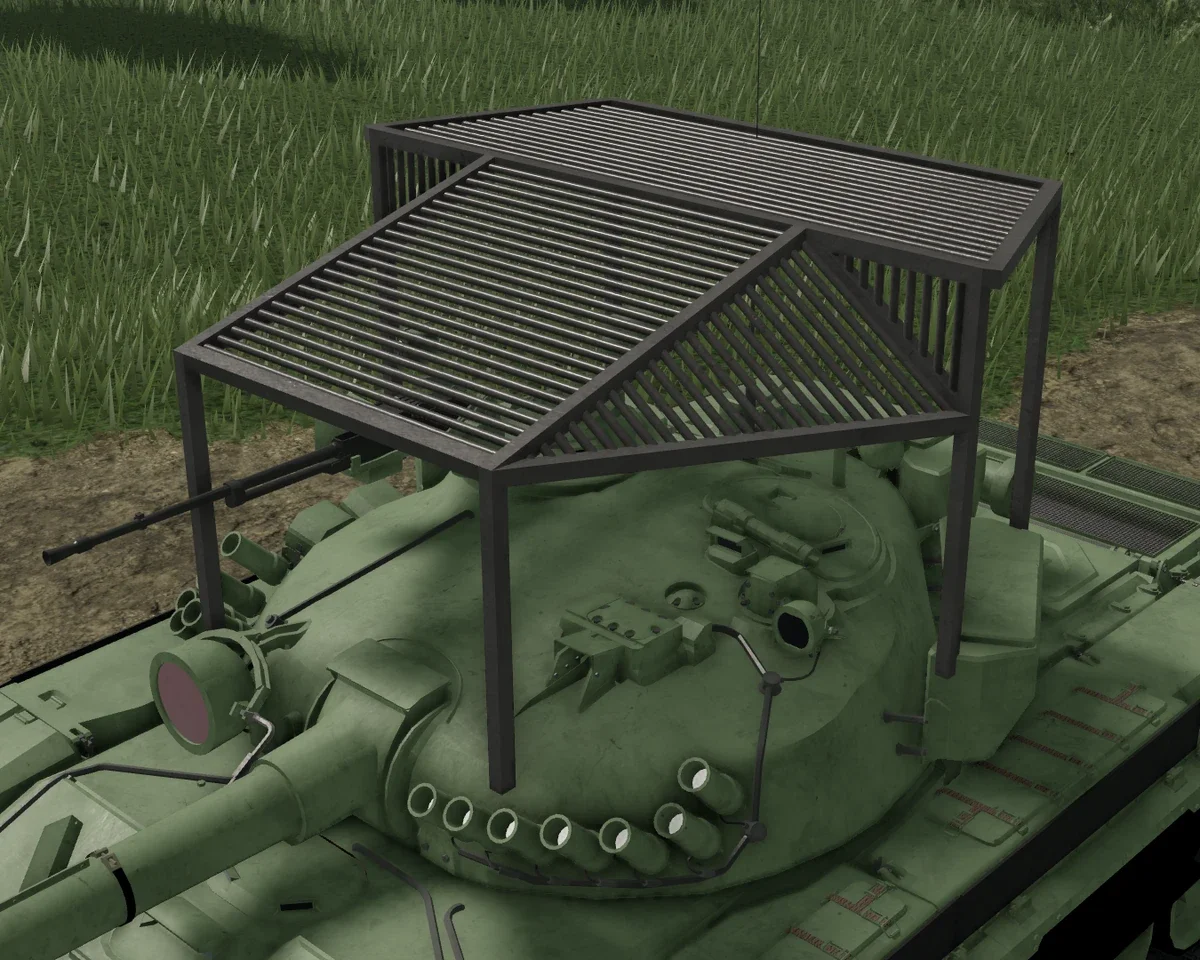

Turret Cage Section Detail
Mounting Bracket Assembly
Engine Deck Protection
Overview

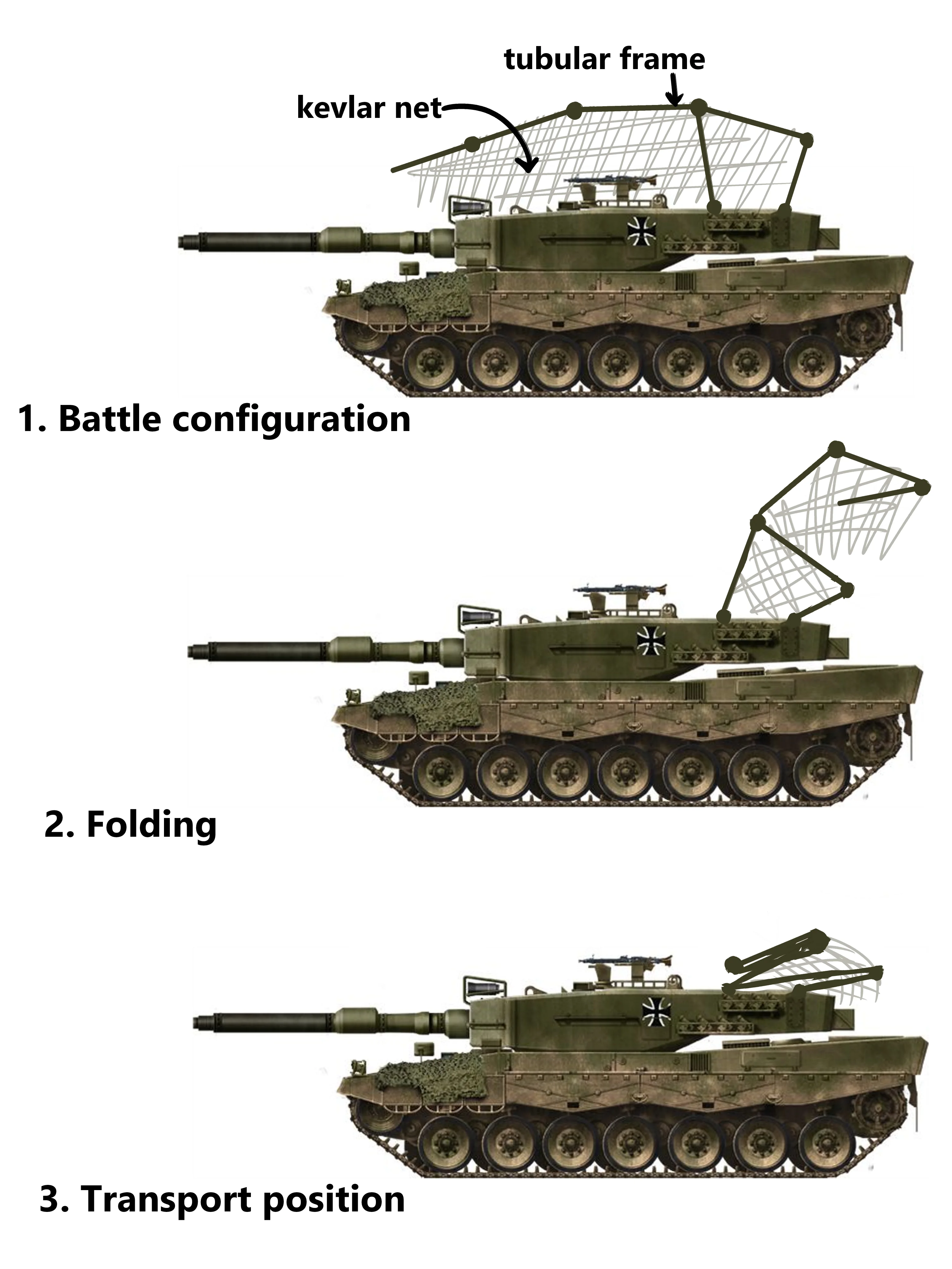

Leopard 2 Cope Cage Armor System
The Dengtai Leopard 2 Anti-Drone Cage is a purpose-designed cope cage armor system engineered specifically for Leopard 2 main battle tanks (A4, A5, A6, A7 variants). It provides critical overhead protection against FPV drones, loitering munitions, and top-attack shaped charges while preserving the tank's full combat capabilities including 360° turret traverse and main gun elevation.
Fabricated from Armox 500 armor steel plate, the cage uses a standoff distance of 300 mm from the hull and turret surfaces to defeat shaped charge jets by disrupting the standoff distance. The open-bar slat design allows crew hatches to operate freely, does not block vision devices or periscopes, and maintains access to all maintenance panels.
Weighing approximately 1,200 kg in its full configuration, the system is designed for field retrofitting by a two-person crew in under 4 hours using only standard tools. No permanent modifications to the tank hull are required — all mounting points utilize existing lifting rings, tie-down points, and bolt bosses on the Leopard 2 chassis.
Leopard 2 with Dengtai cope cage armor system installed
Specifications
Technical Specifications
Leopard 2 Cope Cage Specs
Armox 500 standoff armor system
Dimensions
Modular cage sections cover hull roof, turret top, and engine deck
| Parameter | Value |
|---|---|
| Armor Steel Grade | Armox 500 / MIL-A 46100 |
| Plate Thickness | 10 mm (bars), 6 mm (mesh) |
| Total System Weight | 1,200 kg (full configuration) |
| Standoff Distance | 300 mm from hull/turret surface |
| Variant Compatibility | Leopard 2A4 / A5 / A6 / A7 |
| Installation Method | Bolt-on, no welding, no hull modification |
| Installation Time | 4 hours (2-person crew) |
| Tools Required | Standard socket set, torque wrench |
Features
Features & Benefits
Armox 500 Armor Steel Construction
Fabricated from premium Armox 500 armor plate with 470-540 HBW hardness, providing superior ballistic resistance against FPV drone warheads and fragmentation.
Non-Invasive Bolt-On Installation
No welding, drilling, or permanent hull modifications required. System mounts to existing Leopard 2 lifting rings, tie-down points, and factory bolt bosses.
Full Turret & Weapon Compatibility
Allows unrestricted 360° turret traverse and full main gun elevation. Does not interfere with commander's periscope, gunner's sight, or coaxial weapon systems.
Modular Section Design
Individual cage sections for hull roof, turret top, and engine deck can be replaced independently in the field. Damaged sections swap out in under 30 minutes.
Optimized Standoff Geometry
300 mm standoff distance disrupts shaped charge jet formation from RPGs and HEAT warheads carried by drones, reducing penetration by up to 80%.
Rapid Field Deployment
Complete system installable by two crew members in under 4 hours using standard hand tools. Pre-assembled sections ship ready for bolt-on.
Applications
Where It Installs
Anti-FPV Drone Protection
Deflects and detonates FPV drone warheads before they reach hull and turret armor
Loitering Munition Defense
Standoff geometry neutralizes top-attack loitering munition shaped charge warheads
Peacekeeping & Urban Ops
Adds overhead protection against thrown grenades, molotov cocktails, and rooftop attacks in urban environments
Field Retrofit Programs
Quick-deploy cope cage kits for existing Leopard 2 fleets requiring urgent drone defense upgrades
