PROVEN BALLISTIC PROTECTION
Slat Armor & Bar Armor Fabrication Services
Custom slat armor and bar armor fabrication for military vehicles, MRAPs, and tactical platforms. MIL-SPEC welding, AR400/AR500 steel, global delivery.
Gallery

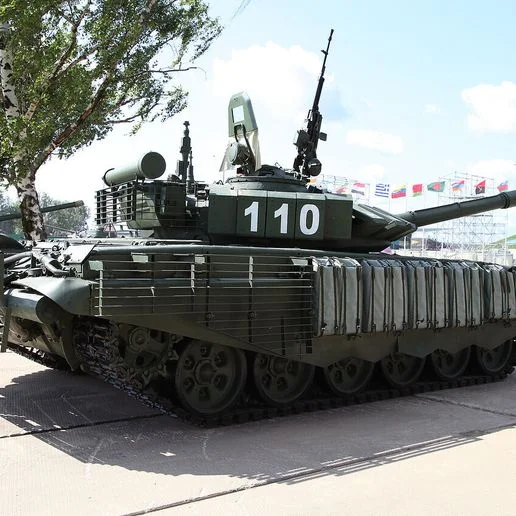

Tactical Vehicle Front Slat Armor

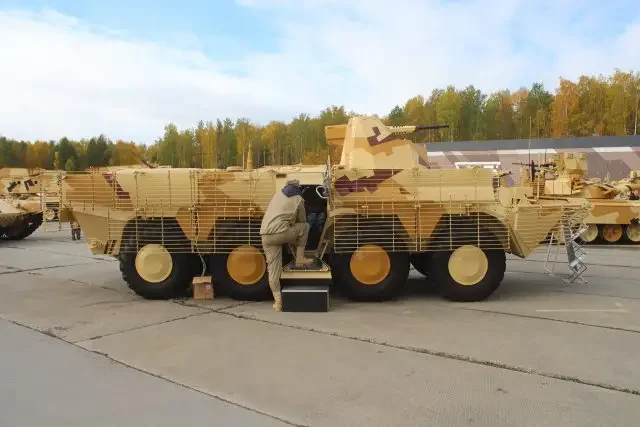

MRAP Bar Armor Side Profile

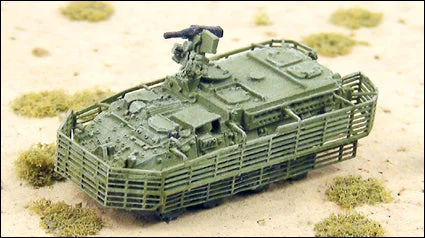

Slat Armor Welding Process

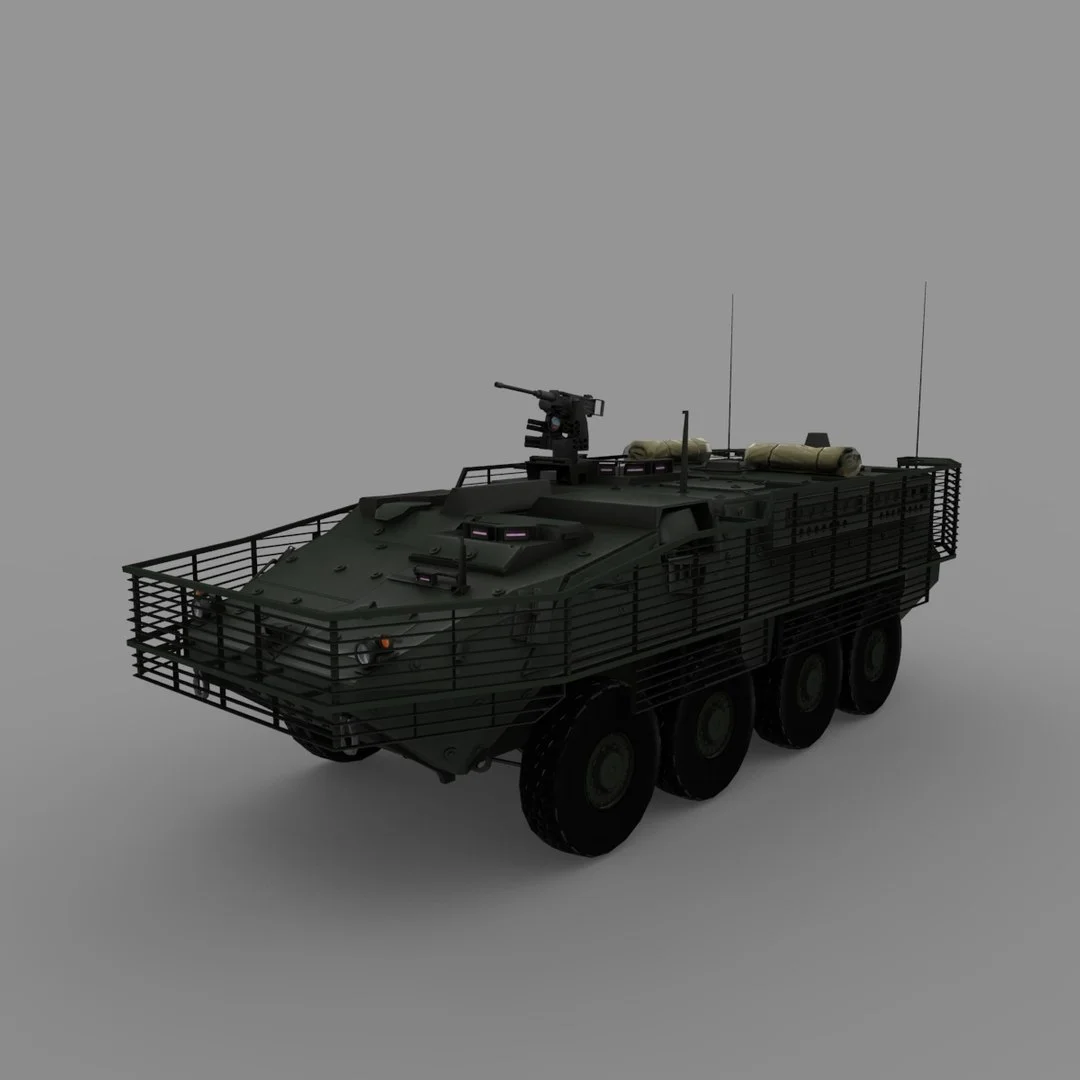

Weld Joint Detail — MIL-SPEC
ABOUT SLAT ARMOR FABRICATION
Custom Slat Armor & Bar Armor Manufacturing
Slat armor, also known as bar armor or cage armor, is a standoff protection system designed to defeat RPGs, anti-tank guided missiles, and FPV drones by disrupting shaped-charge warheads before they impact the vehicle's main armor. Dengtai specializes in fabricating custom slat armor solutions for military vehicles, MRAPs, armored personnel carriers, and static defense positions.
Our fabrication process uses premium AR400 and AR500 abrasion-resistant steel, precision CNC cutting, and MIL-SPEC welding techniques to create slat armor panels that meet or exceed battlefield requirements. Every assembly is jig-welded for dimensional accuracy and undergoes NDT inspection to verify weld integrity.
From initial CAD design to final coating and crating, Dengtai manages the entire fabrication lifecycle. We offer bolt-on and weld-on mounting configurations, multiple steel grade options, and protective coatings including CARC paint, powder coating, or galvanized finish. All products are backed by full dimensional reports, material certifications, and weld inspection documentation.

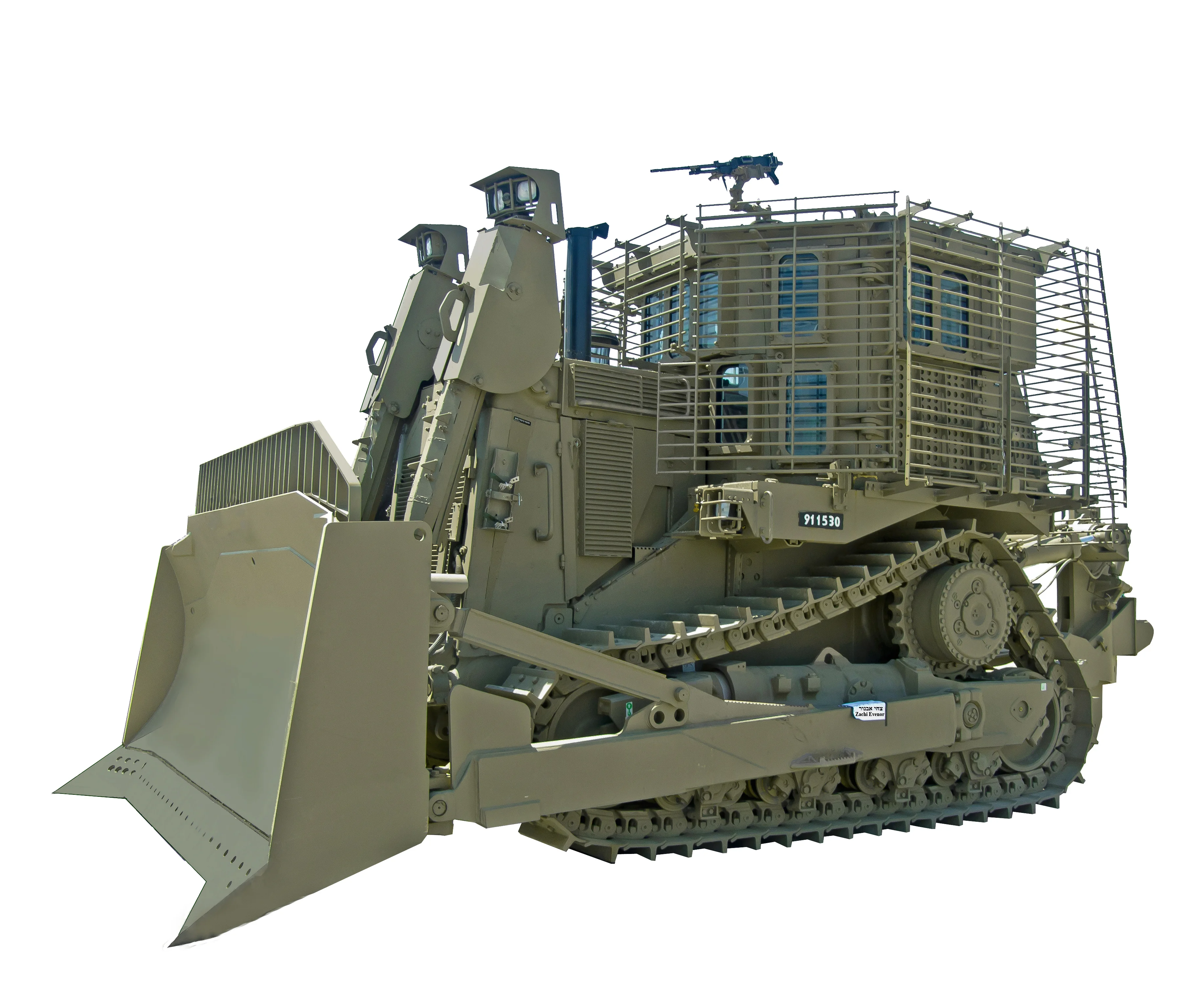

Custom slat armor fabricated for tactical wheeled vehicle — AR500 steel, MIL-SPEC welded
Specifications
Technical Specifications
Slat Armor Dimensions
Standard and custom configurations
Dimensions
| Parameter | Value |
|---|---|
| Steel Grade | AR400, AR500, Hardox 450, or MIL-SPEC equivalent |
| Steel Thickness | 6mm — 16mm (customizable) |
| Slat Width | 25mm — 80mm (standard 50mm) |
| Standoff Distance | 300mm — 600mm from hull surface |
| Welding Standard | AWS D1.1 / MIL-STD-1185 |
| Mounting Type | Bolt-on bracket system or weld-on |
| Surface Finish | CARC paint / powder coat / galvanized |
| NDT Inspection | Magnetic Particle (MT) or Dye Penetrant (PT) available |
Features
Features & Benefits
Superior Craftsmanship
Precision fabrication for mission-critical protection
Premium Armor Steel Grades
We fabricate from AR400, AR500, Hardox 450, and MIL-SPEC equivalent steel, selected for your specific threat profile. Each steel grade meets certified hardness and impact resistance standards.
MIL-SPEC Certified Welding
All welds performed to AWS D1.1 structural welding code with certified welders. Optional MIL-STD-1185 inspection and NDT testing (MT/PT/UT) available for quality verification.
CNC Precision Fabrication
Laser and plasma CNC cutting ensures consistent slot geometry and dimensional accuracy across every panel. Jig-welded assembly guarantees repeatable quality for fleet-scale orders.
Custom Design & Engineering
Our engineering team works from your vehicle specs or CAD models to design slat armor that fits perfectly. We optimize bar spacing, standoff distance, and mounting points for maximum protection.
Multiple Mounting Options
Choose bolt-on bracket systems for quick field installation or weld-on direct attachment for permanent integration. All hardware is Grade 8.8 or higher with anti-corrosion treatment.
Protective Coatings
CARC (Chemical Agent Resistant Coating), military-grade powder coating, or hot-dip galvanizing available. All finishes meet corrosion resistance standards for extended field life.
Applications
Where It Installs
Slat Armor Effectiveness
Real combat data from Ukraine showing slat armor effectiveness against RPGs and drones
Bar Armor Comparison
Cope Cage vs Slat Armor vs Bar Armor — comprehensive comparison of standoff armor types
Welding Standards
Military welding standards AWS D1.1, ISO 3834, MIL-STD for armor fabrication quality
OEM Fabrication Guide
Complete guide to OEM armor fabrication in China for defense buyers and procurement teams
RELATED
Related Products & Resources
T-72 Cope Cage
Anti-drone cage armor for T-72 main battle tanks — AR500 steel, bolt-on installation
Slat Armor Effectiveness
Real combat effectiveness data from Ukraine — statistical analysis of slat armor performance
How to Get an Armor Quote
Step-by-step guide to getting a custom armor fabrication quote from Dengtai
Need Slat Armor for Your Fleet?
Ready to start your project? Get a quote from our engineering team.
