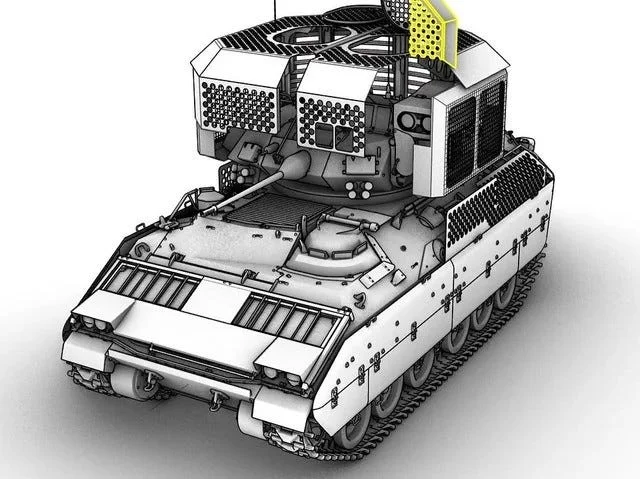

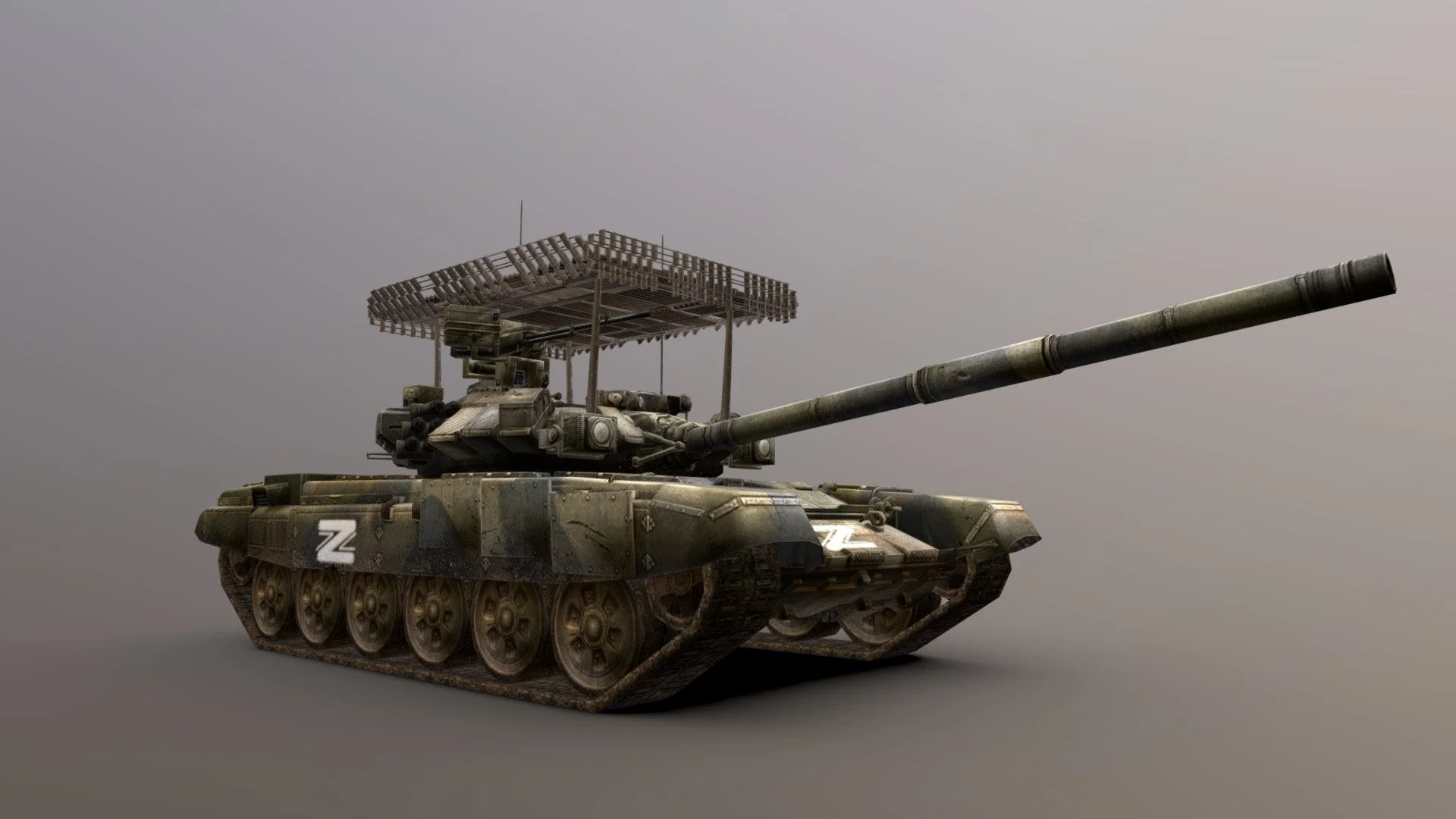

Turret Installation — Mesh Protection

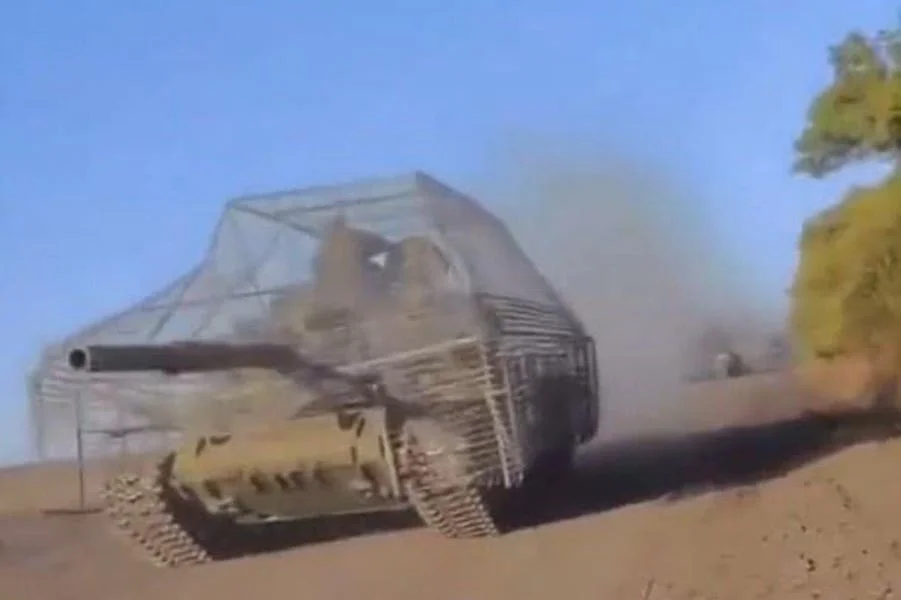

Mesh Weave — Close-up Detail
Complete System — Vehicle Protection
Field Deployment — Rapid Setup
Overview
Lightweight Anti-Drone Mesh for Rapid Deployment Protection
Dengtai's Anti Drone Mesh is a lightweight, high-tensile steel wire mesh protection system designed to defeat FPV drones, quadcopters, and loitering munitions. Unlike heavy cage armor, the mesh system provides wide-area overhead and side protection with minimal weight addition to the host platform.

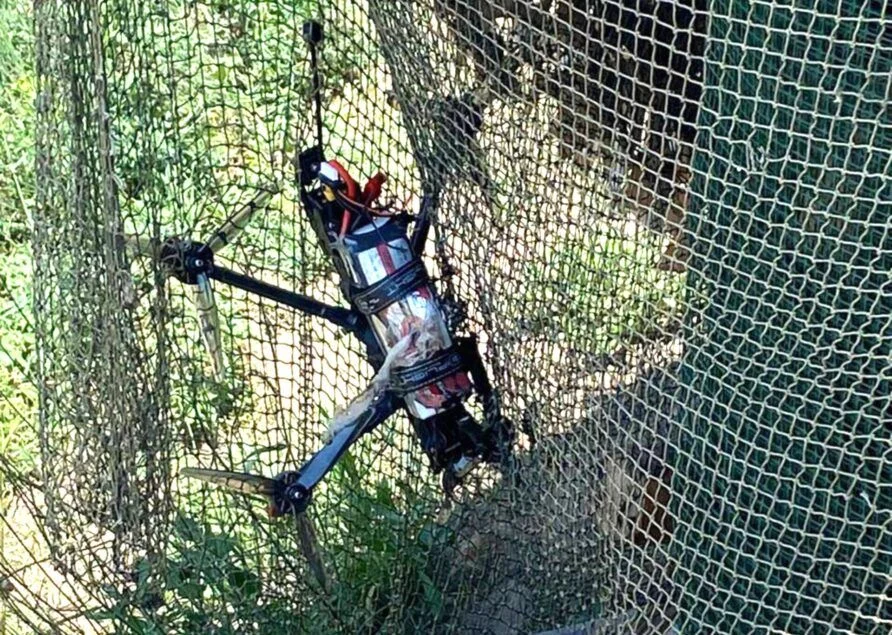

The mesh operates on an entanglement and deflection principle — drones that fly into the mesh become entangled in the wire grid or are deflected away from the protected area, preventing impact with the vehicle or installation. The 50×50 mm aperture is specifically optimized to catch common FPV drone frame sizes while maintaining excellent visibility and airflow.
Manufactured from galvanized high-carbon steel wire with optional stainless steel grades for corrosive environments, the mesh panels can be rapidly installed using existing vehicle mounting points or standalone support frames. Dengtai offers custom panel sizes, edge reinforcements, and integration with existing cage armor systems for layered protection.
Specifications
Technical Specifications
Dimensions
| Parameter | Value |
|---|---|
| Wire Material | High-carbon galvanized steel / SS316 |
| Wire Diameter | 2.5 mm – 4.0 mm |
| Mesh Aperture | 50 mm × 50 mm (standard) |
| Panel Size | 1.2 m × 2.4 m (customizable) |
| Tensile Strength | ≥ 1,500 N/mm² |
| Panel Weight | 8 – 15 kg/m² |
| Coating | Hot-dip galvanized / PVC / CARC |
| Operating Temp | -40°C to +120°C |
Features
Features & Benefits
Drone Entanglement Technology
Proprietary mesh weave pattern designed to catch and entangle FPV drone propellers and frames, stopping them before they reach the target.
Ultra-Lightweight Design
At only 8-15 kg/m², the mesh system adds minimal weight to vehicles — no suspension upgrades or mobility penalties required.
Rapid Field Deployment
Roll-out panel design with quick-attach brackets enables installation in under 2 hours without specialized tools or welding.
Corrosion Resistant
Hot-dip galvanized coating or stainless steel construction ensures long service life in marine, desert, and tropical environments.
Modular Coverage
Interlocking panel system allows any coverage configuration — overhead full cover, partial turret shield, or side curtains.
Low Maintenance
No moving parts, no hydraulics, no electronics. The mesh requires zero maintenance beyond periodic visual inspection.
Applications
Where It Installs
Military Base Perimeter
Overhead mesh screens for base perimeters, CP shelters, and ammo depots against drone surveillance and attack
Convoy Protection
Vehicle-mounted mesh frames for logistics convoys, fuel trucks, and troop transport operating in drone-contested zones
FOB & Command Posts
Lightweight overhead mesh for forward operating bases, command posts, and medical tents to defeat drone-dropped munitions
